Functions:
Controlling up to 50 thermoelectric actuators with the use of 19 outputs
– 3 zones with 3 outputs each (if there are more actuators, the maximum output load is 0,3A)
– 5 zones with 2 outputs each (if there are more actuators, the maximum output load is 0,3A)
• one 230V output for a pump
• voltage-free contact (for controlling an additional heating device)
• possibility of connecting EU-i-1 or EU-i-1m  valve module

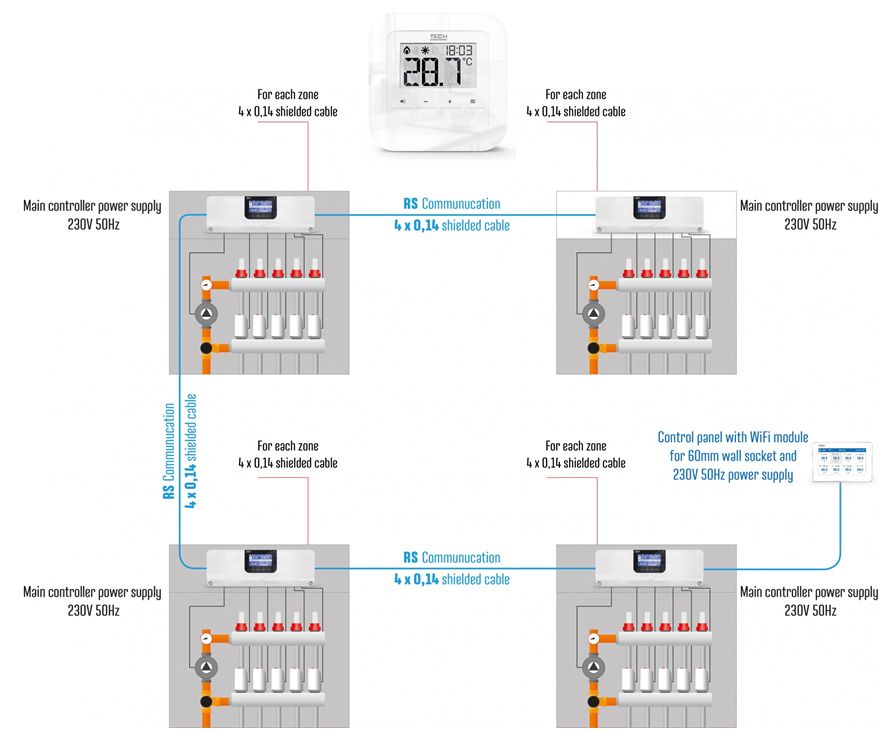

• possibility of connecting up to 4 external controllers in series and controlling them via 1 control panel
• possibility of controlling the system online via eModul app (EU-M-9 panel is necessary)
• heating or cooling mode
• software update via USB

alt

www.techsterowniki.pl

Wifi demo: https://emodul.eu/login



TECH EU-L-9 Wifi lattialämmityksen säätöjärjestelmä
